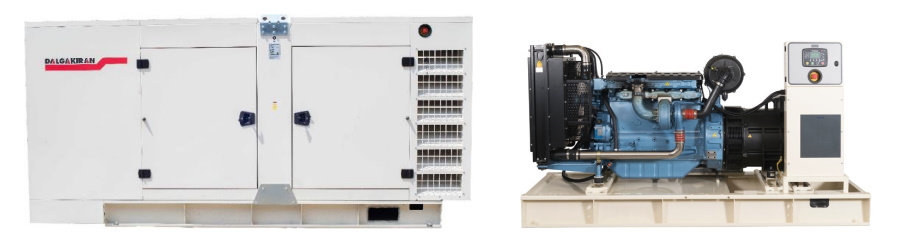

Diesel generator Dalgakiran DJ44BD SMART

Output power	Unit.	Meaning.
Reserve capacity	kVA / kW	44 / 35
Rated power output	kVA / kW	40 / 32

Size	W x D x H	Weight, kg	Fuel tank, l	Sound, dB
Under the hood	1000 x 2150 x 1500	1000	135	N/A
Open	1000 x 1700 x 1250	800	135	N/A

Constant power	Reserve capacity	Rated power output
The maximum power that the generator set is capable of delivering continuously at an average load of up to 100%. Overloading is not allowed.	Power at variable load for a limited time. Operation for 200 hours per year at an average load of 70%. It is used as a backup power supply in case of a power outage. Overloading is not allowed.	Constant power at variable load. The average load should not exceed 70%. 10% overload for 1 hour every 12 hours is allowed.

Engine	Unit of measurement	Meaning.
Manufacturer		BAUDOUIN
Model.		4M06G44/5
Number of cylinders		4
Cylinder arrangement		Ordnoye
Volume	л	2.3
Piston stroke	mm	92
Cylinder diameter	mm	89
Aspiration		NATURAL ASPIRATION
Regulator		Electronic
Cooling system		Liquid
The volume of the liquid	л	12.9
Lubricant volume	л	9.5
Electrical system	Volt	12
Speed / Frequency 50 Hz	RPM	1500 rpm/ 50 Hz
Full motor power (Standby 50 Hz)	kV	41
Fuel consumption at load. %100 PRP 50Hz	l/h	9.3
Fuel consumption at load. %75 PRP 50Hz	l/h	6.8
Fuel consumption at load. %50 PRP 50Hz	l/h	4.6

Generator	Unit of measurement	Meaning.
Number of phases		3
Power factor		0,8
Number of bearings		One
Number of poles		4
Voltage regulation (steady state)		± %1
Insulation class		H
Degree of protection		IP 23
Excitation system		N/A
Connection type		Phillips (Star)
Full harmonic harmonic efficiency – without nadir.		< %2,5
Frequency	Hz	50
Output voltage 50 Hz	VAC	230 / 400
Rated power (in standby mode) 400_50 Hz	kVA	44
