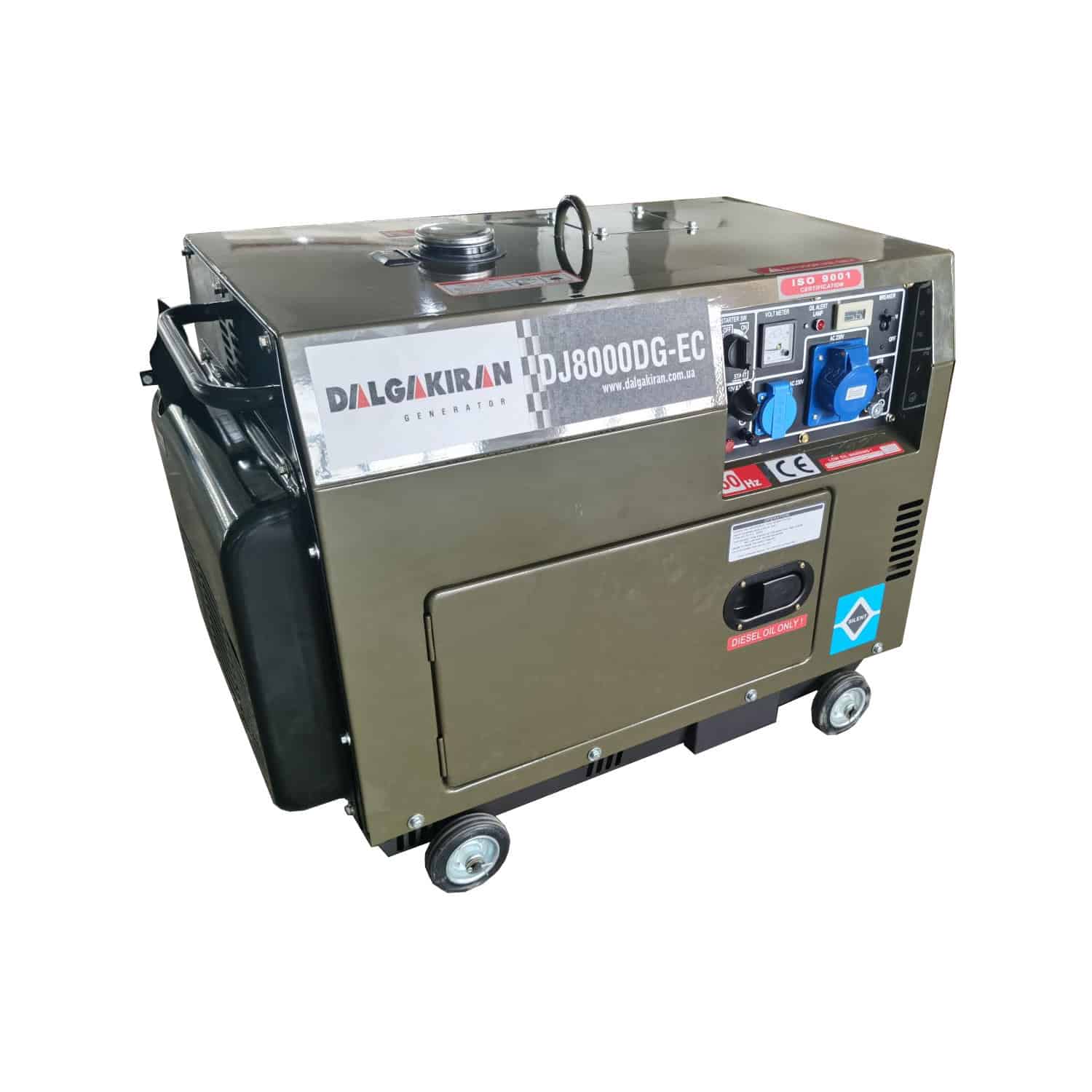

DALGAKIRAN DJ 8000 DG Diesel Generators DG-EC-UA

Engine

• Type: 192FGE
• 4-stroke air-cooled engine
• Highly efficient air filter
• The maximum power at 3000 rpm is 13 hp.
• с.
• Electric starter / Manual start
• Easy start-up with a decompressor
• Low fuel consumption and long battery life
• Fuel tank with a capacity of 15 liters
• Long operating time up to 10 hours
• Oil capacity – 1.75 liters
• Protection against low fuel level
• High capacity rechargeable battery
• Noise level – 72 dB at a distance of 7 m
• Safe to operate the engine
• Availability of consumables and spare parts
• Glow plug for easy starting in winter

CONTROL PANEL

• Voltmeter
• Output 12 V
• Circuit breaker for protection of DC circuits
• Thermal circuit breaker for protection of AC circuits
• Socket 1×32 A with protective cover
• Socket 1×16 A with protective cover
• Fuel level sensor
• Start/stop switch
• Motor hours counter
• Adaptation to automation
• Oil level sensor

ALTERNATOR

• Complies with IEC 34-1 standards
• Maximum power: 8.8 kVA
• Brushless alternator
• Output voltage: 230В
• Automatic voltage regulator
• Protective overload: 1 hour 110%, 2 minutes 120%
• Short circuit protection: 10 sec 300%.
• Insulation resistance: 1800В
• Frequency: 50 Hz
• Power factor (cos. Fi) – 0.8

Technical specification

• Rated power 8 kVA/6.5 kW
• Rated current 27.8 A
• Current 12 V 8.3 A
• Engine model 192 FGE
• Engine type Air, 4-stroke Direct injection, 1 cylinder
• Engine 430 cm3
• The maximum engine power is 13 hp.
• Fuel tank capacity is 15 liters.
• Fuel consumption 1.7 liters per hour
• Oil volume 1.75 liters
• Noise 72 dB – 7 m
• Length x Width x Height 960 x 560 x 790 mm
• Weight 169 kg
• Automatic voltage regulation
• Highly efficient air filter
• Low noise level (protective cover)
• Oil level protection
• Voltmeter
• Motor hours counter
• DC circuit breaker
• AC circuit breaker
• Fuel level sensor
• Extended battery included
• Wheels for easy movement
• Handles for carrying

Equipment.

• Wheels – 4 pcs.
• Handles for carrying – 2 pcs.
• Tool set – 1 pc.
• Ignition keys – 2 pcs.
• Instructions in Ukrainian – 1 pc.
• Rechargeable battery – 1 pc.
• Warranty – 1 year or 250 hours. – 1 pc.
